Compute distances and angles to regions of interest

Compute distances, approach vectors, and both egocentric and allocentric boundary angles relative to regions of interest (RoIs).

Acknowledgements

This example was originally contributed by Will Graham, as part of a collaboration between the UCL Advanced Research Computing Centre and the Keshavarzi Laboratory at the University of Cambridge.

Imports

# For interactive plots: install ipympl with `pip install ipympl` and uncomment
# the following lines in your notebook
# %matplotlib widget
import matplotlib.pyplot as plt
import numpy as np
import xarray as xr

from movement import sample_data
from movement.kinematics import compute_velocity
from movement.plots import plot_centroid_trajectory
from movement.roi import PolygonOfInterest, load_rois

Load sample dataset

In this example, we will use the SLEAP_three-mice_Aeon_proofread example dataset collected using the Aeon platform. We only need the position data array, so we store it in a separate variable.

ds = sample_data.fetch_dataset("SLEAP_three-mice_Aeon_proofread.analysis.h5")
positions: xr.DataArray = ds.position

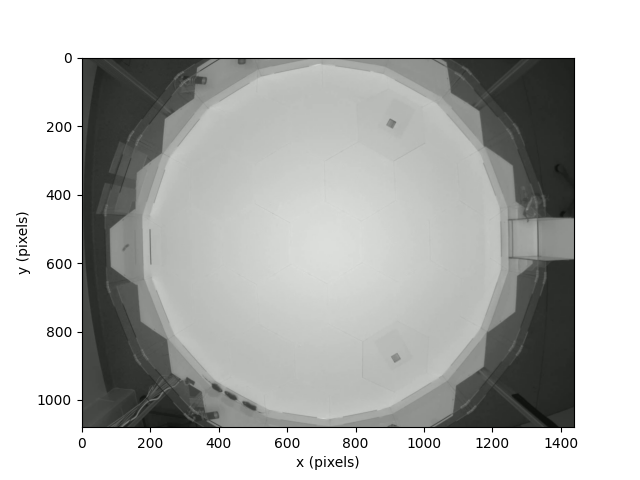

Below we plot the image of the Aeon habitat within which the dataset was recorded.

habitat_fig, habitat_ax = plt.subplots(1, 1)
# Overlay an image of the habitat
habitat_image = ds.frame_path
habitat_ax.imshow(plt.imread(habitat_image))

habitat_ax.set_xlabel("x (pixels)")
habitat_ax.set_ylabel("y (pixels)")

habitat_fig.show()

The habitat is divided up into three main sub-regions. The cuboidal structure on the right-hand-side of the habitat is the nest of the three individuals taking part in the experiment. The majority of the habitat is an open octadecagonal (18-sided) shape, which is the bright central region that encompasses most of the image. This central region is surrounded by a (comparatively thin) “ring”, which links the central region to the nest. In this example, we will look at how we can use the functionality for regions of interest (RoIs) provided by movement to analyse our sample dataset.

Define regions of interest

In order to ask questions about the behaviour of our individuals with respect to the habitat, we first need to define the RoIs to represent the distinct components of the habitat. We can do this interactively by drawing regions in the movement GUI and saving them to a GeoJSON file.

Attention

The following steps require running this example locally (not on Binder), with napari installed. If you haven’t already, install movement with the optional napari dependencies by following the installation instructions.

First, open a single video frame (or the entire video) in the movement GUI by running the following code in a Jupyter notebook:

import napari
viewer = napari.Viewer()
viewer.window.add_plugin_dock_widget("movement", "movement")
viewer.open(ds.frame_path)  # can also use ds.video_path

Note

Alternatively, you can type movement launch in a terminal, wait for the napari viewer to open, and drag-and-drop the frame/video file into the viewer.

Then use the Define regions of interest menu to create a region layer (by clicking the Add new layer button) and draw three polygons representing the key sub-regions of the habitat:

1. The Ring outer boundary: trace the outer octadecagonal (18-sided) edge of the ring that surrounds the central area.

2. The Central region: trace the inner octadecagonal boundary enclosing the bright open area.

3. The Nest region: draw a rectangle around the cuboidal structure on the right-hand side.

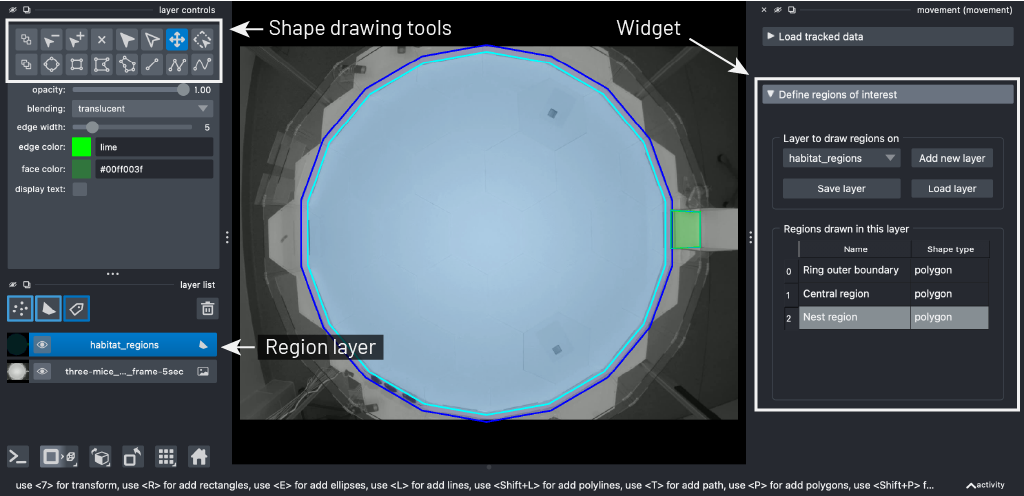

Three polygons drawn over the Aeon habitat. Note that we’ve assigned custom colours to each polygon to make them easier to distinguish, but this is not necessary.

Name each polygon as shown above, then click Save layer to export them to a GeoJSON file (e.g. habitat_regions.geojson).

Note

The ring is really a polygon with a hole (the central region). Since napari does not support drawing polygons with holes, we draw the outer and inner boundaries as separate polygons and combine them in code below.

regions_file = "habitat_regions.geojson"  # replace with the path to your file

rois = load_rois(regions_file)
print(f"Loaded {len(rois)} regions: {[r.name for r in rois]}")

Loaded 3 regions: ['Ring outer boundary', 'Central region', 'Nest region']

Defining regions programmatically

If your region vertices are already known (e.g. stored in a config file or derived from experimental metadata), you can create and save RoIs directly in Python, without using the GUI:

from movement.roi import PolygonOfInterest

rois = [
    PolygonOfInterest([(x0, y0), (x1, y1), ...], name="Region A"),
    PolygonOfInterest([(x0, y0), (x1, y1), ...], name="Region B"),
]

We now have three PolygonOfInterest objects. Let’s assign them to named variables for clarity.

ring_outer = rois[0]
central_region = rois[1]
nest_region = rois[2]

To represent the ring (with the central region as a hole), we create a new PolygonOfInterest using the outer boundary’s coordinates and the central region as an interior boundary. The holes argument accepts a list because a polygon can have multiple non-overlapping holes.

ring_region = PolygonOfInterest(
    ring_outer.coords,
    holes=[central_region.coords],
    name="Ring region",
)

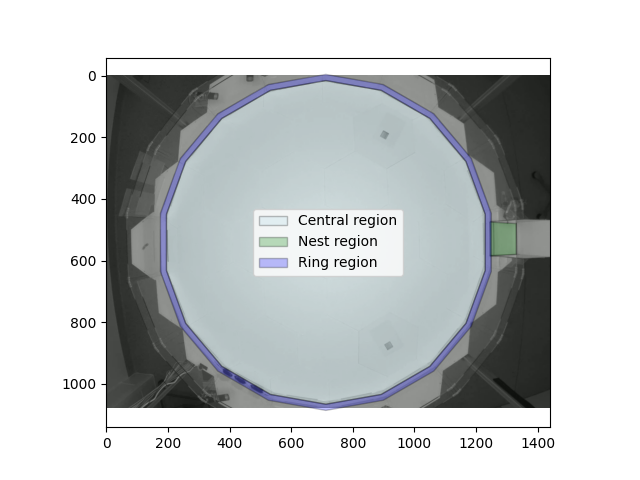

Let’s visualise our three analysis regions overlaid on the habitat.

habitat_fig, habitat_ax = plt.subplots(1, 1)
habitat_ax.imshow(plt.imread(habitat_image))

central_region.plot(habitat_ax, facecolor="lightblue", alpha=0.25)
nest_region.plot(habitat_ax, facecolor="green", alpha=0.25)
ring_region.plot(habitat_ax, facecolor="blue", alpha=0.25)
habitat_ax.legend()
habitat_fig.show()

View individual paths inside the habitat

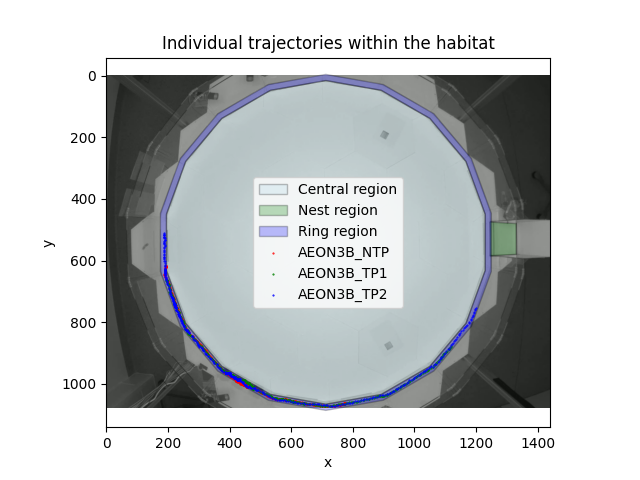

We can now overlay the paths that the individuals followed on top of our image of the habitat and the RoIs that we have defined.

habitat_fig, habitat_ax = plt.subplots(1, 1)
# Overlay an image of the habitat
habitat_ax.imshow(plt.imread(habitat_image))

central_region.plot(habitat_ax, facecolor="lightblue", alpha=0.25)
nest_region.plot(habitat_ax, facecolor="green", alpha=0.25)
ring_region.plot(habitat_ax, facecolor="blue", alpha=0.25)

# Plot trajectories of the individuals
mouse_names_and_colours = list(
    zip(positions.individuals.values, ["r", "g", "b"], strict=False)
)
for mouse_name, col in mouse_names_and_colours:
    plot_centroid_trajectory(
        positions,
        individual=mouse_name,
        ax=habitat_ax,
        linestyle="-",
        marker=".",
        s=1,
        c=col,
        label=mouse_name,
    )
habitat_ax.set_title("Individual trajectories within the habitat")
habitat_ax.legend()

habitat_fig.show()

At a glance, it looks like all the individuals remained inside the ring-region for the duration of the experiment. We can verify this programmatically, by asking whether the ring_region contained the individuals’ locations, at all recorded time-points.

# This is a DataArray with dimensions: time, keypoint, and individual.
# The values of the DataArray are True/False values, indicating if at the given
# time, the keypoint of individual was inside ring_region.
individual_was_inside = ring_region.contains_point(positions)
all_individuals_in_ring_at_all_times = individual_was_inside.all()

if all_individuals_in_ring_at_all_times:
    print(
        "All recorded positions, at all times,\n"
        "and for all individuals, were inside ring_region."
    )
else:
    print("At least one position was recorded outside the ring_region.")

All recorded positions, at all times,
and for all individuals, were inside ring_region.

Compute the distance to the nest

Defining RoIs means that we can efficiently extract information from our data that depends on the location or relative position of an individual to an RoI. For example, we might be interested in how the distance between an individual and the nest region changes over the course of the experiment. We can query the nest_region that we created for this information.

# Compute all distances to the nest; for all times, keypoints, and
# individuals.
distances_to_nest = nest_region.compute_distance_to(positions)

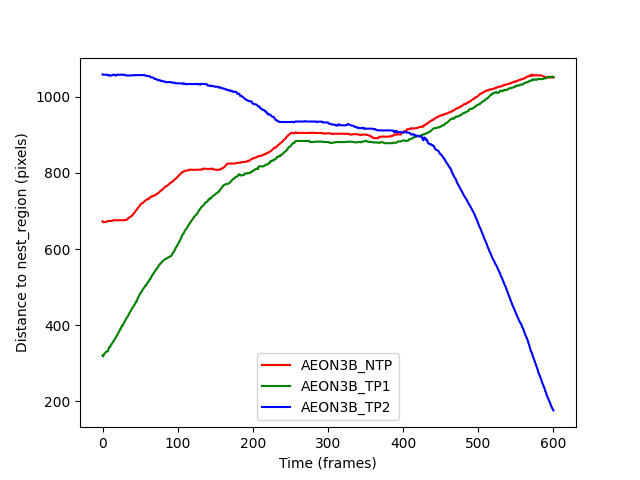

distances_fig, distances_ax = plt.subplots(1, 1)
for mouse_name, col in mouse_names_and_colours:
    distances_ax.plot(
        distances_to_nest.sel(individuals=mouse_name),
        c=col,
        label=mouse_name,
    )
distances_ax.legend()
distances_ax.set_xlabel("Time (frames)")
distances_ax.set_ylabel("Distance to nest_region (pixels)")
distances_fig.show()

We can see that the AEON38_TP2 individual appears to be moving towards the nest during the experiment, whilst the other two individuals are moving away from the nest. The “plateau” in the figure between frames 200-400 is when the individuals meet in the ring_region, and remain largely stationary in a group until they can pass each other.

One other thing to note is that PolygonOfInterest.compute_distance_to() is returning the distance “as the crow flies” to the nest_region. This means that structures potentially in the way (such as the ring_region walls) are not accounted for in this distance calculation. Further to this, the “distance to a RoI” should always be understood as “the distance from a point to the closest point within an RoI”.

If we wanted to check the direction of closest approach to a region, referred to as the approach vector, we can use PolygonOfInterest.compute_approach_vector(). The distances that we computed via PolygonOfInterest.compute_distance_to() are just the magnitudes of the approach vectors.

approach_vectors = nest_region.compute_approach_vector(positions)

The boundary_only keyword

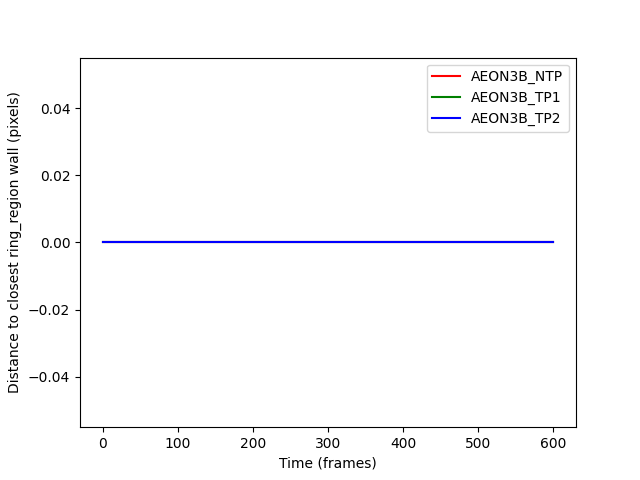

From our plot of the distances to the nest, we saw a time-window in which the individuals are grouped up, possibly trying to pass each other as they approach from different directions. We might be interested in whether they move to opposite walls of the ring while doing so. To examine this, we can plot the distance between each individual and the ring_region, using the same commands as above.

However, we get something slightly unexpected:

distances_to_ring_wall = ring_region.compute_distance_to(positions)
distances_fig, distances_ax = plt.subplots(1, 1)
for mouse_name, col in mouse_names_and_colours:
    distances_ax.plot(
        distances_to_ring_wall.sel(individuals=mouse_name),
        c=col,
        label=mouse_name,
    )
distances_ax.legend()
distances_ax.set_xlabel("Time (frames)")
distances_ax.set_ylabel("Distance to closest ring_region wall (pixels)")

print(
    "distances_to_ring_wall are all zero:",
    np.allclose(distances_to_ring_wall, 0.0),
)

distances_fig.show()

distances_to_ring_wall are all zero: True

The distances are all zero because when a point is inside a region, the closest point to it is itself.

To find distances to the ring’s walls instead, we can use boundary_only=True, which tells movement to only look at points on the boundary of the region, not inside it. Note that for 1D regions (movement.roi.LineOfInterest), the “boundary” is just the endpoints of the line.

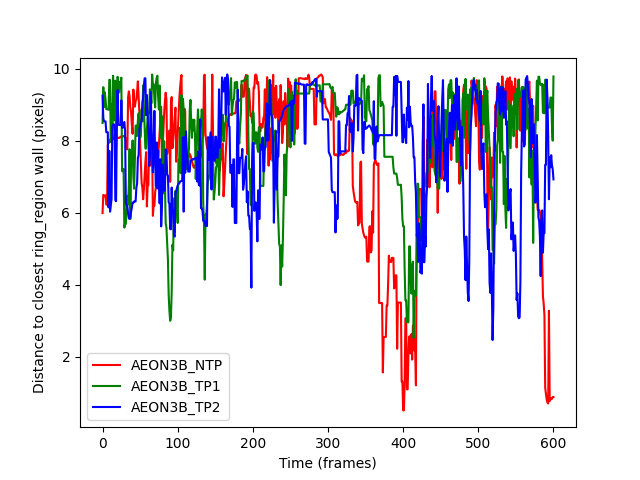

Let’s try again with boundary_only=True:

distances_to_ring_wall = ring_region.compute_distance_to(
    positions, boundary_only=True
)
distances_fig, distances_ax = plt.subplots(1, 1)
for mouse_name, col in mouse_names_and_colours:
    distances_ax.plot(
        distances_to_ring_wall.sel(individuals=mouse_name),
        c=col,
        label=mouse_name,
    )
distances_ax.legend()
distances_ax.set_xlabel("Time (frames)")
distances_ax.set_ylabel("Distance to closest ring_region wall (pixels)")

print(
    "distances_to_ring_wall are all zero:",
    np.allclose(distances_to_ring_wall, 0.0),
)

distances_fig.show()

distances_to_ring_wall are all zero: False

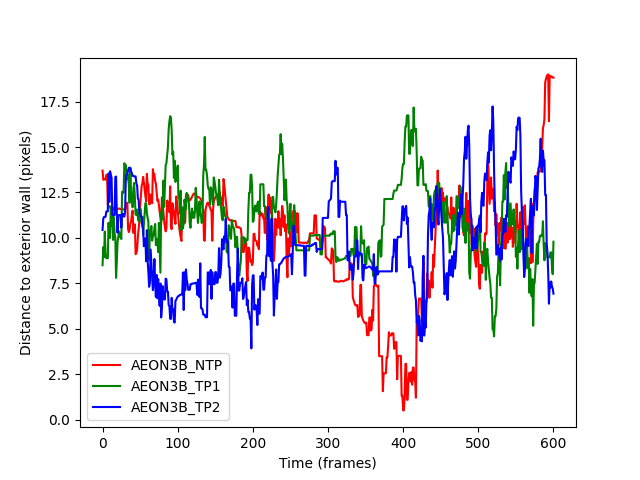

The resulting plot looks much more like what we expect, but is again not very helpful; we get the distance to the closest point on either the interior or exterior wall of the ring_region. This means that we can’t tell if the individuals do move to opposite walls when passing each other. Instead, let’s ask for the distance to just the exterior wall.

# Note that the exterior_boundary of the ring_region is a 1D RoI (a series of
# connected line segments). As such, boundary_only needs to be False.
distances_to_exterior = ring_region.exterior_boundary.compute_distance_to(
    positions
)
distances_exterior_fig, distances_exterior_ax = plt.subplots(1, 1)
for mouse_name, col in mouse_names_and_colours:
    distances_exterior_ax.plot(
        distances_to_exterior.sel(individuals=mouse_name),
        c=col,
        label=mouse_name,
    )
distances_exterior_ax.legend()
distances_exterior_ax.set_xlabel("Time (frames)")
distances_exterior_ax.set_ylabel("Distance to exterior wall (pixels)")
distances_exterior_fig.show()

This output is much more helpful. We see that the individuals are largely the same distance from the exterior wall during frames 250-350, and then notice that;

• Individual AEON_TP1 moves far away from the exterior wall,

• AEON3B_NTP moves almost up to the exterior wall,

• and AEON3B_TP2 seems to remain between the other two individuals.

After frame 400, the individuals appear to go back to chaotic distances from the exterior wall again, which is consistent with them having passed each other in the ring_region and once again having the entire width of the ring to explore.

Boundary angles

Having observed the individuals’ behaviour as they pass one another in the ring_region, we can begin to ask questions about their orientation with respect to the nest. movement currently supports the computation of two such “boundary angles”;

• The allocentric boundary angle. Given a region of interest \(R\), reference vector \(\vec{r}\) (such as global north), and a position \(p\) in space (e.g. the position of an individual), the allocentric boundary angle is the signed angle between the approach vector from \(p\) to \(R\), and \(\vec{r}\).

• The egocentric boundary angle. Given a region of interest \(R\), a forward vector \(\vec{f}\) (e.g. the direction of travel of an individual), and the point of origin of \(\vec{f}\) denoted \(p\) (e.g. the individual’s current position), the egocentric boundary angle is the signed angle between the approach vector from \(p\) to \(R\), and \(\vec{f}\).

Note that egocentric angles are generally computed with changing frames of reference in mind - the forward vector may be varying in time as the individual moves around the habitat. By contrast, allocentric angles are always computed with respect to some fixed reference frame.

For the purposes of our example, we will define our “forward vector” as the velocity vector between successive time-points, for each individual - we can compute this from positions using movement.kinematics.compute_velocity(). We will also define our reference frame, or “global north” direction, to be the direction of the positive x-axis.

forward_vector = compute_velocity(positions)
global_north = np.array([1.0, 0.0])

allocentric_angles = nest_region.compute_allocentric_angle_to_nearest_point(
    positions,
    reference_vector=global_north,
    in_degrees=True,
)
egocentric_angles = nest_region.compute_egocentric_angle_to_nearest_point(
    forward_vector,
    positions[:-1],
    in_degrees=True,
)

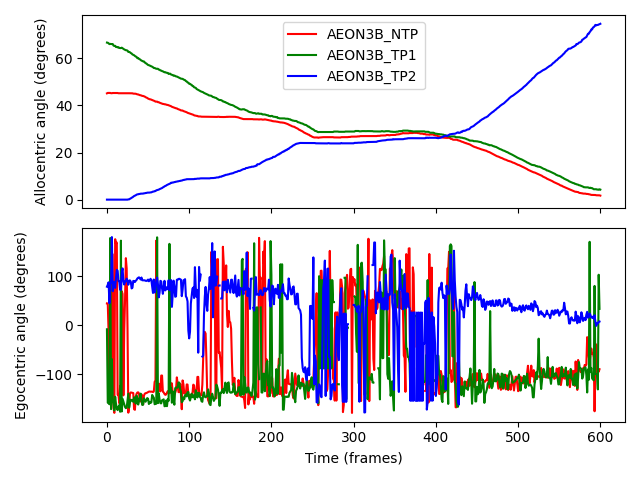

angle_plot, angle_ax = plt.subplots(2, 1, sharex=True)
allo_ax, ego_ax = angle_ax

for mouse_name, col in mouse_names_and_colours:
    allo_ax.plot(
        allocentric_angles.sel(individuals=mouse_name),
        c=col,
        label=mouse_name,
    )
    ego_ax.plot(
        egocentric_angles.sel(individuals=mouse_name),
        c=col,
        label=mouse_name,
    )

ego_ax.set_xlabel("Time (frames)")

ego_ax.set_ylabel("Egocentric angle (degrees)")
allo_ax.set_ylabel("Allocentric angle (degrees)")
allo_ax.legend()

angle_plot.tight_layout()
angle_plot.show()

Allocentric angles show step-like behaviour because they only depend on an individual’s position relative to the RoI, not their forward vector. This makes the allocentric angle graph resemble the distance-to-nest graph (inverted on the y-axis), with a “plateau” during frames 200-400 when the individuals are (largely) stationary while passing each other.

Egocentric angles, on the other hand, fluctuate more due to their sensitivity to changes in the forward vector. Outside frames 200-400, we see trends:

• AEON3B_TP2 moves counter-clockwise around the ring, so its egocentric angle decreases ever so slightly with time - almost hitting an angle of 0 degrees as it moves along the direction of closest approach after passing the other individuals.

• The other two individuals move clockwise, so their angles show a gradual increase with time. Because the two individuals occasionally get in each others’ way, we see frequent “spikes” in their egocentric angles as their forward vectors rapidly change.

During frames 200-400, rapid changes in direction cause large fluctuations in the egocentric angles of all the individuals, reflecting the individuals’ attempts to avoid colliding with (and to make space to move passed) each other.
